MERI SFT Surface Turbine

for Aerobic Biological Effluent Treatment

MERI SFT Surface Turbine

for Aerobic Biological Effluent Treatment

Technology

The SFT surface aerator turbine is a mechanical device used in aerobic biological wastewater treatment. It works on the principle of mechanical aeration, where oxygen from the atmosphere is transferred into the wastewater while simultaneously mixing it to maintain a homogenous condition for microorganisms.

The SFT relies on a high-speed rotating turbine impeller placed at the water surface, the turbulence created enhances the oxygen transfer rate (OTR) and promotes efficient biological degradation of organic pollutants, it supports activated sludge or aerobic lagoon systems.

Features

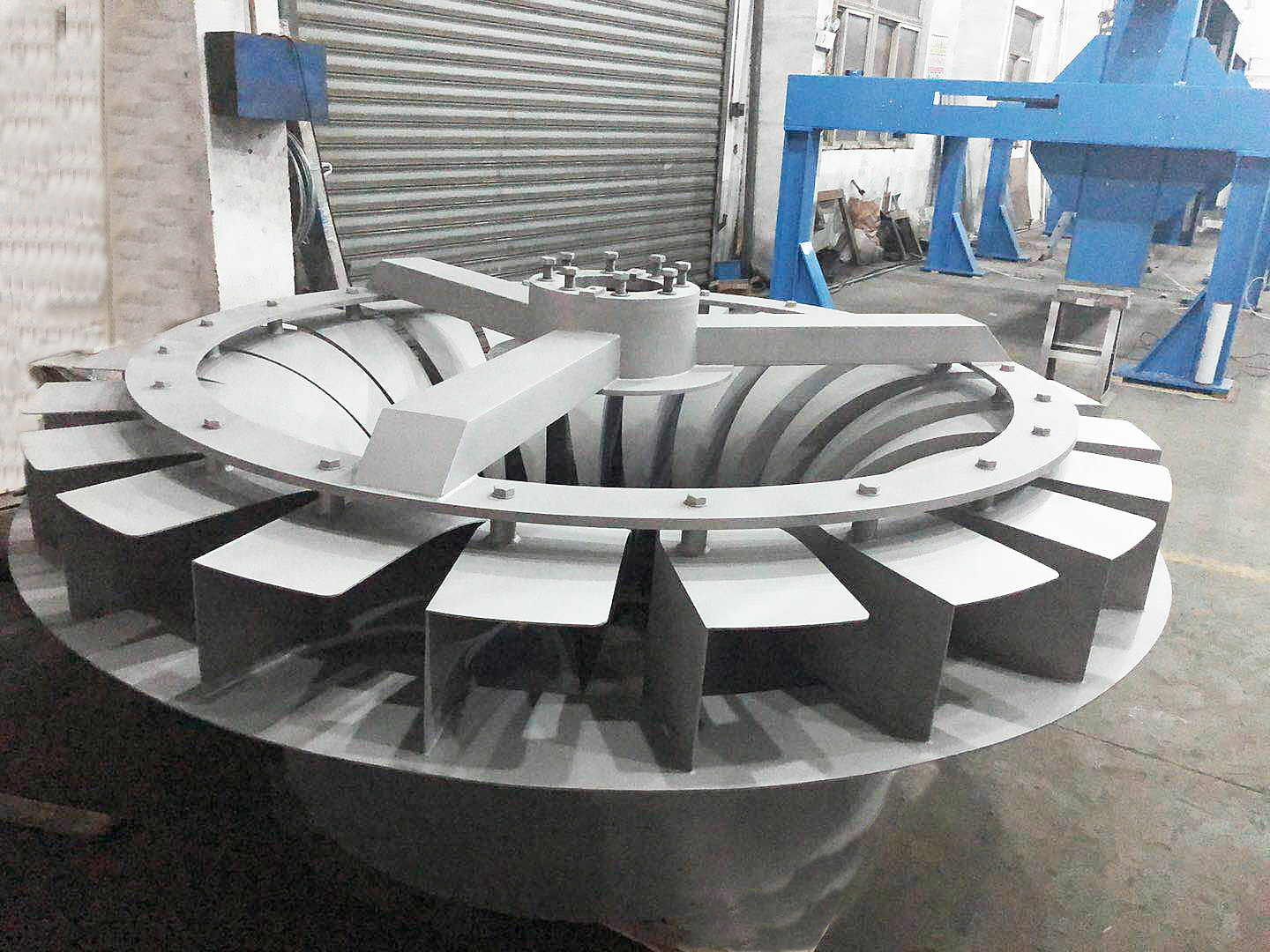

Turbine/Impeller: Precision-balanced for high oxygen transfer and minimal vibration
Shaft mounted Gearbox with Direct Drive Motor: Provides mechanical power, optimized for continuous operation
Float or Bridge Mounted: Can be mounted on a floating system for lagoons or fixed on bridges/tanks
Splash Guard & Deflectors: Control water spray and direct aeration flow for maximum oxygen dissolution
Material of Construction: Stainless Steel
Adjustable Speed/Height Options: For tuning aeration depending on influent load

Why to buy

Reliable Oxygen Supply: Essential for aerobic bacteria to break down pollutants.
Cost-Effective: Lower lifecycle cost compared to diffused aeration in some setups
Flexibility: Suitable for variable effluent loads and shock loads
Low Downtime: Rugged design minimizes breakdowns and maintenance frequency
Compliance with Standards: Helps achieve statutory discharge norms for COD, BOD, and TSS reduction

Typical & Proven Process

Aeration for Aerobic Biological Effluent Treatment
Activated Sludge Process (ASP) → aeration basins
Oxidation Ditches → continuous loop flow with surface aerators.
Extended Aeration → small to medium plants
Aerobic Lagoons & Stabilization Ponds → floating surface aerators
Sludge Holding Tanks → to maintain aerobic condition and reduce odor
